VACUUM LIFT SYSTEMS

ABOUT THIS PRODUCT

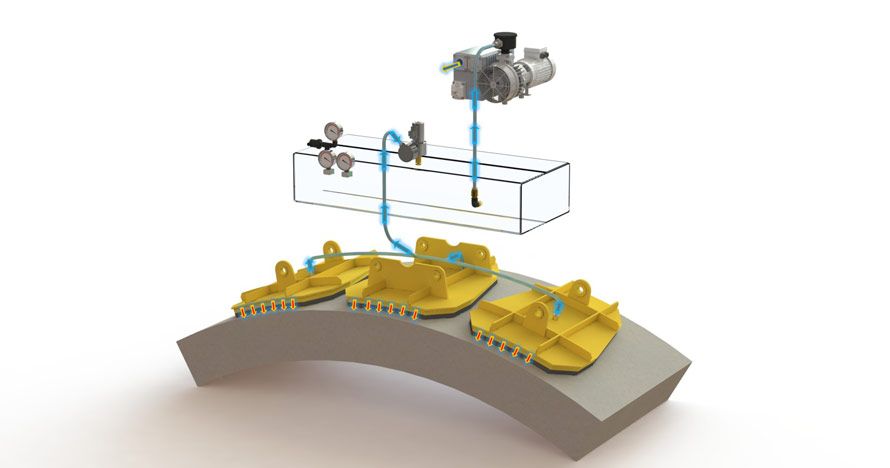

A pump draws the vacuum between the suction cup and the part to be lifted and stores this vacuum in a specially designed chamber. By creating a vacuum, the atmospheric pressure in the vacuum cleaner's housing is removed. The product is then pressed against the suction cup by the same atmospheric pressure of 1 kg/cm² (which varies between 950 and 1030 hectopascals); Consequently, a suction cup of 1 m² has a pressure of 10,000 kg, so the suction cup can lift 4,000 kg in accordance with European regulations. This physical phenomenon makes suction cup handling an extremely efficient and reliable technique that can perform a large number of handling operations.


TRANSPORT - CONVEYOR TECHNOLOGY

    Tailor-made design: The jacks can lift up to 30 tons of load, or more depending on the customer's requirements.Load variety: Vacuum clamping allows for effective lifting of concrete, pipes, slabs and slabs.Ease of use: The part can be lifted instantly with a simple push button picked up and put down.Safety: The vacuum level is continuously monitored to detect leaks and alert you when the load needs to be put down.Productivity increase: Vacuum handling takes only a few seconds compared to several minutes with traditional mechanical means.Integrity : Thanks to the use of special rubber, handling with the suction cup leaves no marks even on very delicate surfaces.Easy to use: Lifting with the suction cup is a handling from above: positioning and reversing the load are simple and easy operations (laying panels, installation of windows, assembly of machine parts, etc.).
